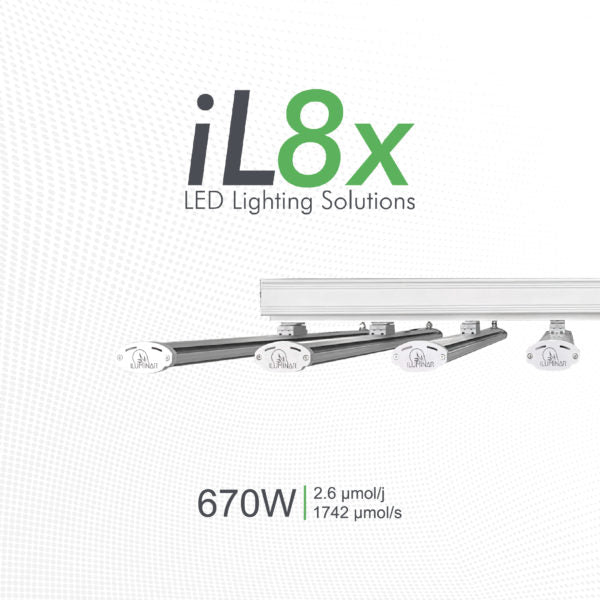

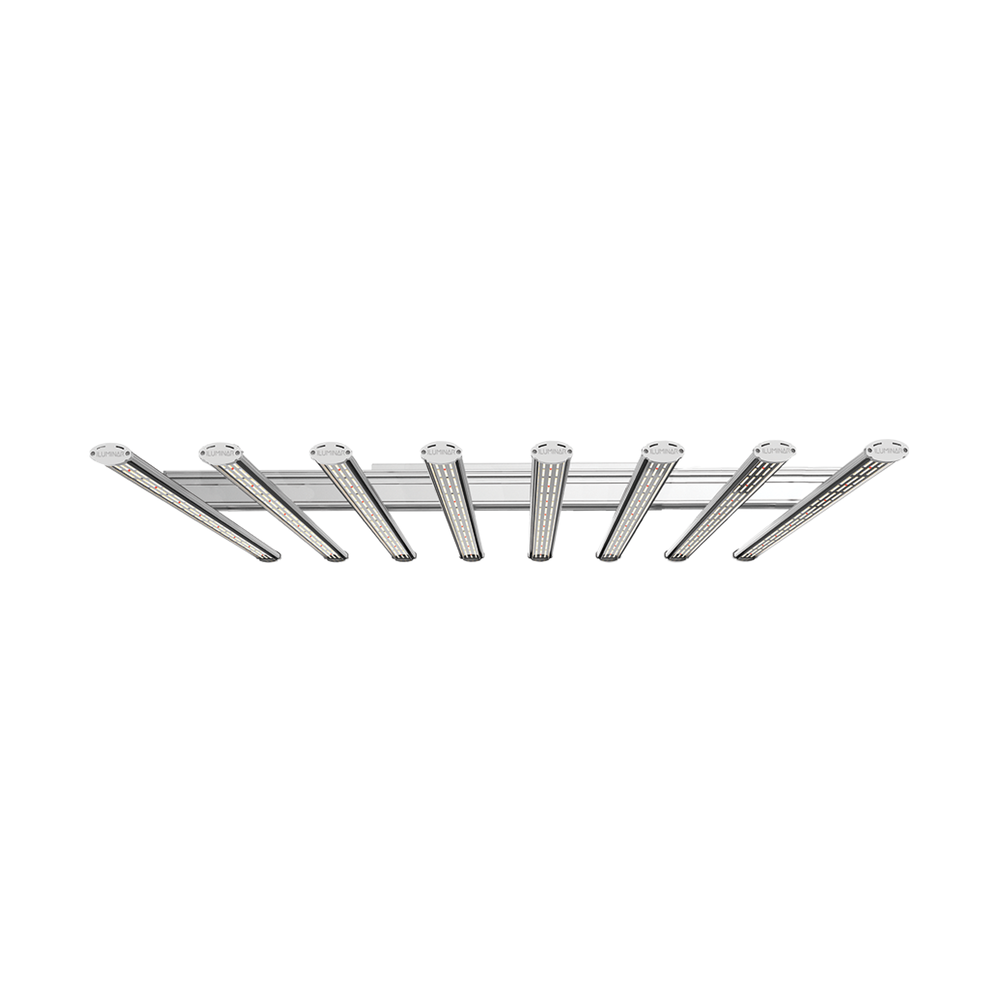

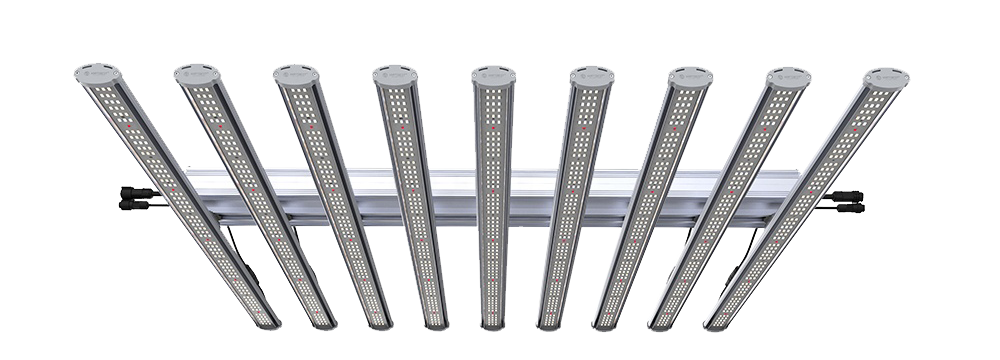

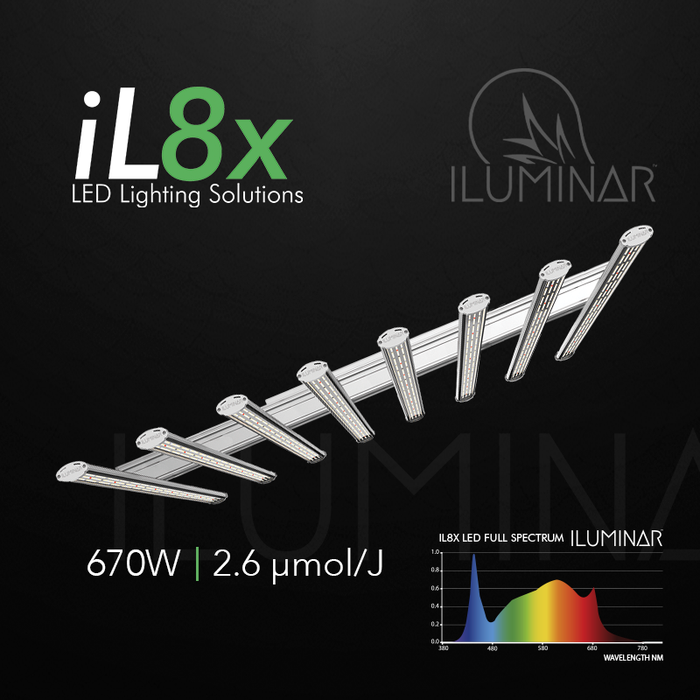

ILUMINAR LED - iL8x 670W 120-277V Low-Clearance 8-Bar LED (High Performance Flowering)

The iL8X LED is designed to outperform the competition with additional diodes and a tuned spectrum to deliver iconic results. This 670W LED has a full spectrum array specifically engineered for vegetative and flower cycles that require high μmol performance at a lower clearance to the canopy.

HIGH PERFORMANCE HORTICULTURAL LED LIGHT FOR FLOWERING

The iL8x is perfect for both large commercial facilities as well as stand-alone hobby use. A quick and easy installation with the ability to daisy chain several fixtures in a row. IP65 certified for damp locations.

iL8x TECHNICAL SPECS​

The 670W iL8x LED has a full spectrum array specifically engineered for vegetative and flower cycles that require high μmol performance at a lower clearance to the canopy.

• PPF: 1742 μmol/s
• Efficacy:  2.6 μmol/j
• Input Power: 670 Watts
• Weight: 35.3 lbs | 16 kg

iL8x SPECIFICATIONS

• Emitter Type: LED Diodes (various spectrums available)
• Input Power: Smart Sensing™ 100V to 277V
• Finishing Mounting Height: 6”-12” to top of Canopy
• Emitter Cooling: Passive / Extruded Case
• Dimming / Controllable: 0-10V Controllable
• Light Distribution: +/- 5%: 125º
• Waterproof Rating: IP65 for Damp/Wet Conditions
• LED Lifespan (90% of Life): 55,000+ Hours
• Power Factor: > 90%

FEATURES​

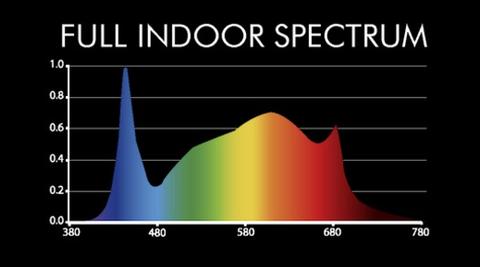

• Spectrum Tuned: FS Grow (Full Spectrum Growth)
• High Efficiency SMD LED Array
• Low Profile
• ETL Listed
• 5-Year Warranty

PHYSICAL SPECS

• Height: 5.08 in / 129mm
• Width: 39.4 in / 1003mm
• Length: 42 in / 1067mm

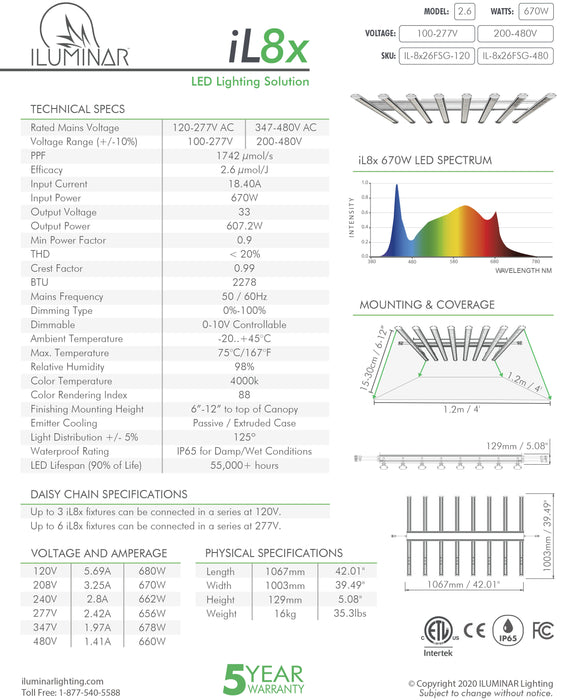

iL8x 670W SPEC SHEET

iL8x 670W USER MANUAL
